Stable PCB Automatic Glue Dispenser , Multipurpose Glue Dispensing Systems
  • Stable PCB Automatic Glue Dispenser , Multipurpose Glue Dispensing Systems
  • Stable PCB Automatic Glue Dispenser , Multipurpose Glue Dispensing Systems
  • Stable PCB Automatic Glue Dispenser , Multipurpose Glue Dispensing Systems

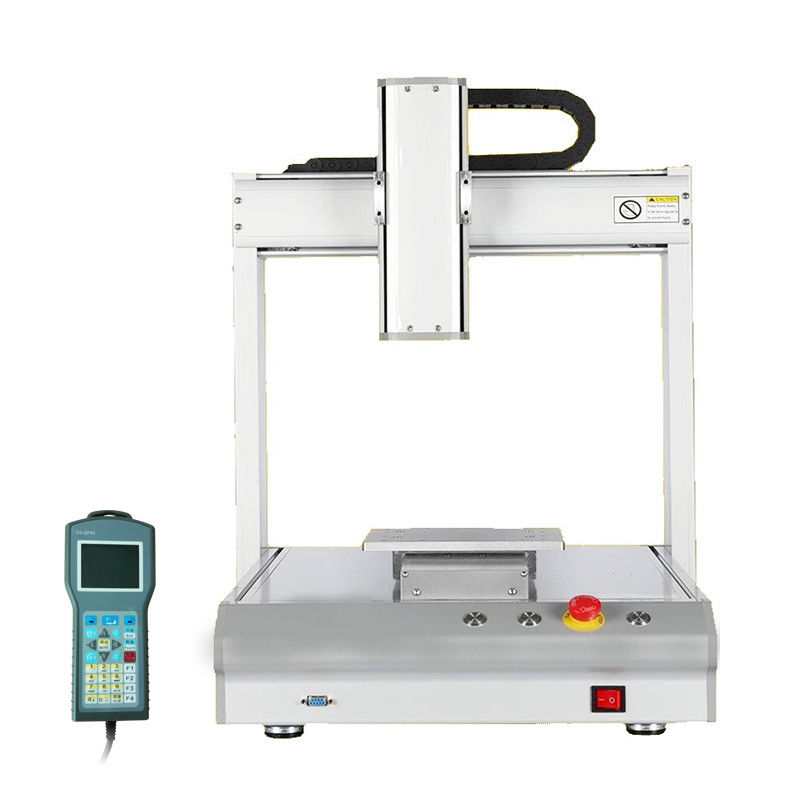

Stable PCB Automatic Glue Dispenser , Multipurpose Glue Dispensing Systems

Place of Origin China
Brand Name Waterun
Certification CE
Model Number DJ-331
Product Details
Operating Range:
X300*Y:300 *Z100mm
Movement Speed:
0.1~800mm/sec
Accuracy:
+-0.02mm
Editing Mode:
Teaching Pendant
Movement Patterns:
Point, Straight Line, Line, Circle, Arc
Dimensions(mm):
450 X 450 X 520mm (W X D X H)
High Light:

Stable Automatic Glue Dispenser

,

PCB Automatic Glue Dispenser

,

Multipurpose Glue Dispensing Systems

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD2500 ~ 3500
Delivery Time
3-10 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability
500 units per month
Product Description

Price Mobile Phone Quality Pcb Automatic High Precision Automated Glue Dispensing Machine


Description:

Our glue dispensing robot has high performance and cost-effective platform, the working process is flexible and fast. The dispensing velocity, time, angles and dispensing volume, etc can be control as desired. It is suitable for various glue dispensing control, replace the manual dispensing operation, to realize the automatic dispensing, it improves the production efficiency, stable quality, and keep the dispensing process consistency. It can repid recovery cost.


Product Features:

  • Replace the human labor and save labor cost.
  • Simple and convenient operation, high speed and precise control.
  • Realize the precise dispensing by the high-precision motor.
  • High performance Linear structure platform with nice apprearance.



Stable PCB Automatic Glue Dispenser , Multipurpose Glue Dispensing Systems 0



Parameters:

Model


 DJ-331

Number of Controlled axes
3 Axis





Effective Travel
X Axis
300mm
Y Axis
300mm
Z Axis
100mm

Transmission mode
Double-track timing belt
Motor System
Precision Step Motor
Top speed
800mm/sec
Repeat accuracy
±0.02mm
Maximum load
8kg / 4kg / 4kg (X-Y-Z)
File storage space
999 Programs

Size
W
450mm
D
450mm
H
520mm
Weight


50kg



Competitive Advantage:


 Stable PCB Automatic Glue Dispenser , Multipurpose Glue Dispensing Systems 1


Stable PCB Automatic Glue Dispenser , Multipurpose Glue Dispensing Systems 2

Stable PCB Automatic Glue Dispenser , Multipurpose Glue Dispensing Systems 3

Stable PCB Automatic Glue Dispenser , Multipurpose Glue Dispensing Systems 4



We, Shenzhen Waterun Technology is established in 2003, located in Shenzhen, China. We are a leading manufacturer of Automated Equipmnets for electronic assembly industry. Our products include screw fasterning robot, soldering robot, glue dispensing robot, fume extractors etc. Waterun owns two factories and one business & logistric centor and nearly 100 employees. Due to the good quality and good pricing, our products are getting popular in many countries in the world. We have been supplying to a number of Global top 500 companies. Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.
