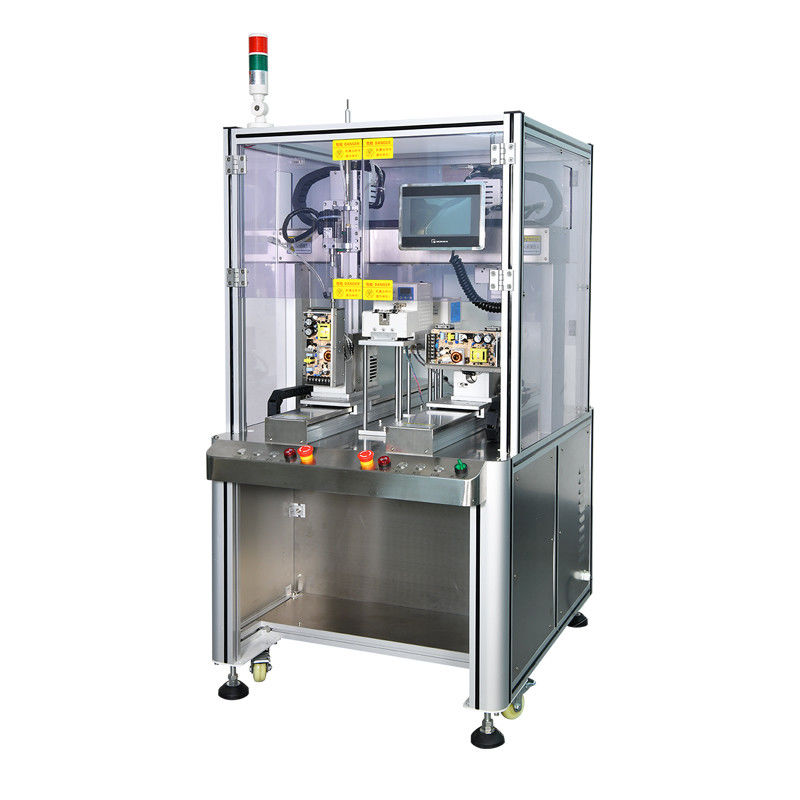

Multi Function Screw Automatic Machine 5 Axis , Industrial Automated Screw Assembly
  • Multi Function Screw Automatic Machine 5 Axis , Industrial Automated Screw Assembly
  • Multi Function Screw Automatic Machine 5 Axis , Industrial Automated Screw Assembly
  • Multi Function Screw Automatic Machine 5 Axis , Industrial Automated Screw Assembly
  • Multi Function Screw Automatic Machine 5 Axis , Industrial Automated Screw Assembly
  • Multi Function Screw Automatic Machine 5 Axis , Industrial Automated Screw Assembly
Multi Function Screw Automatic Machine 5 Axis , Industrial Automated Screw Assembly

Multi Function Screw Automatic Machine 5 Axis , Industrial Automated Screw Assembly

Place of Origin China
Brand Name Waterun
Certification CE
Model Number WT7024-2Z
Product Details
Operating Range:
X240 * Y1/700 * X240 * Y2/700 * Z135mm（Double Z Axis）
Accuracy:
±0.03mm
Screwing Time:
1.0~1.5s/piece
Dimensions(mm):
1100 X 800 X 1620mm
Weight:
120kg
Highlight:

Multi Function Screw Automatic Machine

,

Screw Automatic Machine 5 axis

,

Industrial Automated Screw Assembly

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD3800 ~ 6000
Delivery Time
3-10 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability
300 units per month
Product Description

Customized Multi-functions High Speed OperationScrew Locking Machine



Application:

Production lines for keyboards, toys, power strips, lighting, mobile phones, computers, telephones, calculators, cases, chargers, various small household appliances and small objects, etc.

Product application areas include electronics industry,toy industry, home appliance industry, and Communications industry.



Multi Function Screw Automatic Machine 5 Axis , Industrial Automated Screw Assembly 0

Multi Function Screw Automatic Machine 5 Axis , Industrial Automated Screw Assembly 1



Features:

1. Permanent magnetic suction (vacuum suction), to achieve fast feeding and screwing.
2. The operator can use manual positioning to do the programming. It is highly efficient and very easy to learn the operation.
3. With alarm function for fastening missing, untightened screws, worn thread, etc.
4. Support auto sensing start operation function.
5. With the fixed work table, the working position can be adjusted flexibly.



Product Description:

Multi Function Screw Automatic Machine 5 Axis , Industrial Automated Screw Assembly 2Multi Function Screw Automatic Machine 5 Axis , Industrial Automated Screw Assembly 3



Referenced Specification:

Model
WT7024-2Z
Remark
5 axis
X axis
240mm
Y1/Y2 axis
700mm
Z axis
135mm
repeatability accuracy
±0.02mm

Suitable screw size

M1.5 – M4 (total screw length ≤ 20mm)
Z speed
≤300mm/s
XY speed
≤500mm/s
Working efficiency
1.0~1.5s/piece
Power supply
AC220V 10A 50-60Hz
Input air pressure
0.4~0.6MPa
Program capacity
15files (99 points/program file)
Outer dimension (L*W*H)
1100 x 800 x 1620mm
Weight
120KG



Competitive Advantage:
Multi Function Screw Automatic Machine 5 Axis , Industrial Automated Screw Assembly 4Multi Function Screw Automatic Machine 5 Axis , Industrial Automated Screw Assembly 5

Multi Function Screw Automatic Machine 5 Axis , Industrial Automated Screw Assembly 6

Multi Function Screw Automatic Machine 5 Axis , Industrial Automated Screw Assembly 7






We, Shenzhen Waterun Technology is established in 2003, located in Shenzhen, China. We are a leading manufacturer of Automated Equipmnets for electronic assembly industry. Our products include screw fasterning robot, soldering robot, glue dispensing robot, fume extractors etc.Waterun owns two factories and one business & logistric centor and nearly 100 employees. Due to the good quality and good pricing, our products are getting popular in many countries in the world. We have been supplying to a number of Global top 500 companies. Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.
