3 Axis Automatic Screwdriver Machine Practical 0.8s-1.2s / Piece
  • 3 Axis Automatic Screwdriver Machine Practical 0.8s-1.2s / Piece
  • 3 Axis Automatic Screwdriver Machine Practical 0.8s-1.2s / Piece
  • 3 Axis Automatic Screwdriver Machine Practical 0.8s-1.2s / Piece

3 Axis Automatic Screwdriver Machine Practical 0.8s-1.2s / Piece

Place of Origin China
Brand Name Waterun
Certification CE
Model Number WT-4223-2Y
Product Details
Operating Range:
X210*Y1/Y2:420 *Z135mm
Movement Speed:
XY: 500mm/s Z: 300mm/s
Accuracy:
0.03mm
Screwing Time:
0.8~1.2s/piece
Suitable Screw Size:
M1.5 ~ M4 (Total Length No More Than 16mm)
Dimensions(mm):
810 X 720 X 900mm
Weight:
80kg
High Light:

3 Axis Automatic Screwdriver Machine

,

Automatic Screwdriver Machine Practical

,

1.2s/Piece Automatic Feeder Screwdriver Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD3800 ~ 6000
Packaging Details
Auto screw tightening machine 94 X 94 X 95 cm 139kgs
Delivery Time
3-10 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability
300 units per month
Product Description

High Precision Automatic Screw Feeding and Screwing Machine For Electronic Toy Products LED lights


Description:



Automatic Screwdriver machine model WT-4223-2Y is the screw drop type, the screws feed to the screwdriver bit directly one by one through a tube, to achieve extremely fast feeding and screwing. It saves the time to pick up the screws from the screw feeder.Robotic screw fastening system can increase throughput on a variety of assembly application.

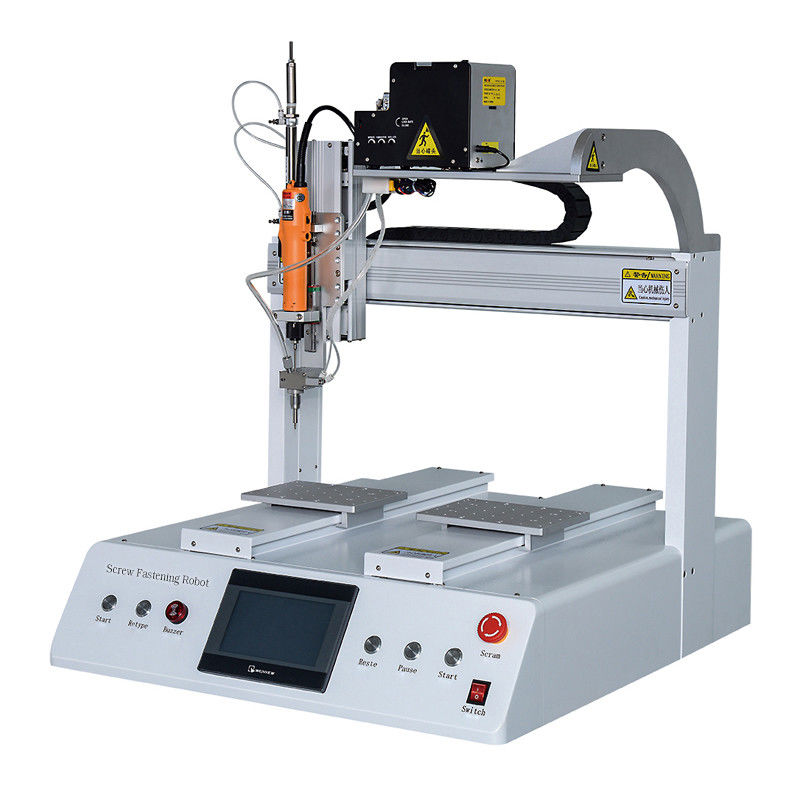

3 Axis Automatic Screwdriver Machine Practical 0.8s-1.2s / Piece 0


Product Highlight:



Strong Versatility, Strong Flexibility
Very Easy to Operate
Screw Fastening Failure Rate less than 0.01%



Applications:



Suitable for all kinds of consumer electronic products, such as mobile phones, cordless phones, calculators, navigators, audio, cameras, laptops, tablet computers, learning machines, small household appliances and so on.





Product Features:



1. Strong versatility, M1.5~M4 screws can be used, different screws can adjust the size of the guide rail,(block plate/feeding hose/discharge holder) can be changed.AT the same time, it has the intelligent detection function, screw is not tightened, leakage lock, slip teeth will automatically alarm and point out of the location of the bad screw.



2. Strong flexibility, with a gerneral support template of the rapid exchange of multiple molds, p[roduct programs can be slected directly on the touch screen.



3. When the product and fixture are standard, and the tolerance is less than 0.2mm, the lock failure rate is less than 0.01%.



4. The equipment is small, can be easily put into the production line, and equipped with the function of putting before and taking after.



5. The configuration of double platform, one in one out of the platform operation, the maximum to save the machine shutdown caused by manual replacement of products, double the efficiency of locking screw.



6. The equipment can open the " put before and take after " function, before and after the connecting process workers can complete the product loading and unloading work, without the special persono responsible for the product loading and unloading, save labor.



7. Drag programming can be completed by ordinary workers in a few minuates, and the efficiency is several times faster than that on the market.





Competitive Advantage:


We, Shenzhen Waterun Technology is established in 2003, located in Shenzhen, China. We are a leading manufacturer of Automated Equipmnets for electronic assembly industry. Our products include screw fasterning robot, soldering robot, glue dispensing robot, fume extractors etc.Waterun owns  two factories and one business & logistric centor and nearly 100 employees. Due to the good quality and good pricing, our products are getting popular in many countries in the world. We have been supplying to a number of Global top 500 companies. Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.
