Automatic Screwdriver Machine
>
|
| Place of Origin | China |
| Brand Name | Waterun |
| Certification | CE |
| Model Number | WT-4222-2Z |

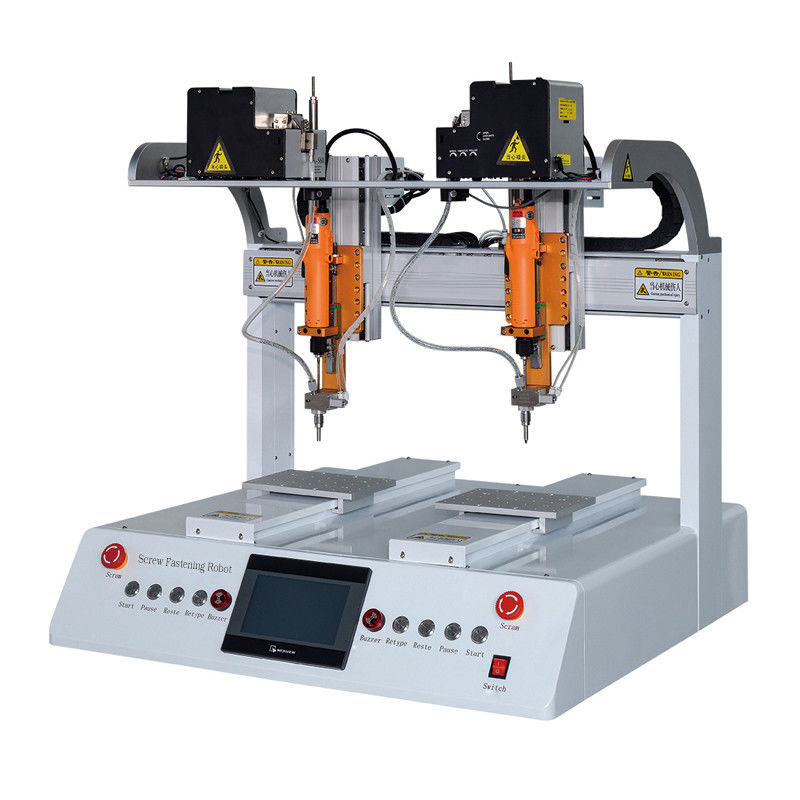

Desktop Locking Auto Fastening Auto-Screwdriving Machine Automatic Fixing Screw Robot
Features:
1. The screws will feed to the screwdriver bit directly one by one through a tube, to achieve extremely fast feeding and screwing.
2. The operator can use manual positioning to do the programming. It is highly efficient and very easy to learn the operation.
3. With alarm function for fastening missing, untightened screws, worn thread, etc.
4. Support auto sensing start operation function.
Product Details:
|
Operating range |
X220 * Y1/420 * X220 * Y2/420 * Z135mm |
|
Movement speed |
X/Y Axis: ≤500mm/s,Z Axis: ≤300mm/s. |
|
Repeatability accuracy |
±0.02mm |
|
Screwing time for each screw |
0.8~1.2s/piece |
|
Suitable screw size |
M2 – M4 (total screw length ≤ 16mm) |
|
Control system |
SCM + Touch Screen |
|
Program capacity |
15 files, each file can save up to 99 points |
|
Air source |
0.4 -0.6 Mpa |
|
Dimensions |
830 x 820 x 900mm |
|
Weight |
80kg |
Competitive Advantage:
We, Shenzhen Waterun Technology is established in 2003, located in Shenzhen, China. We are a leading manufacturer of Automated Equipmnets for electronic assembly industry. Our products include screw fasterning robot, soldering robot, glue dispensing robot, fume extractors etc. Waterun owns two factories and one business & logistric centor and nearly 100 employees. Due to the good quality and good pricing, our products are getting popular in many countries in the world. We have been supplying to a number of Global top 500 companies. Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.
