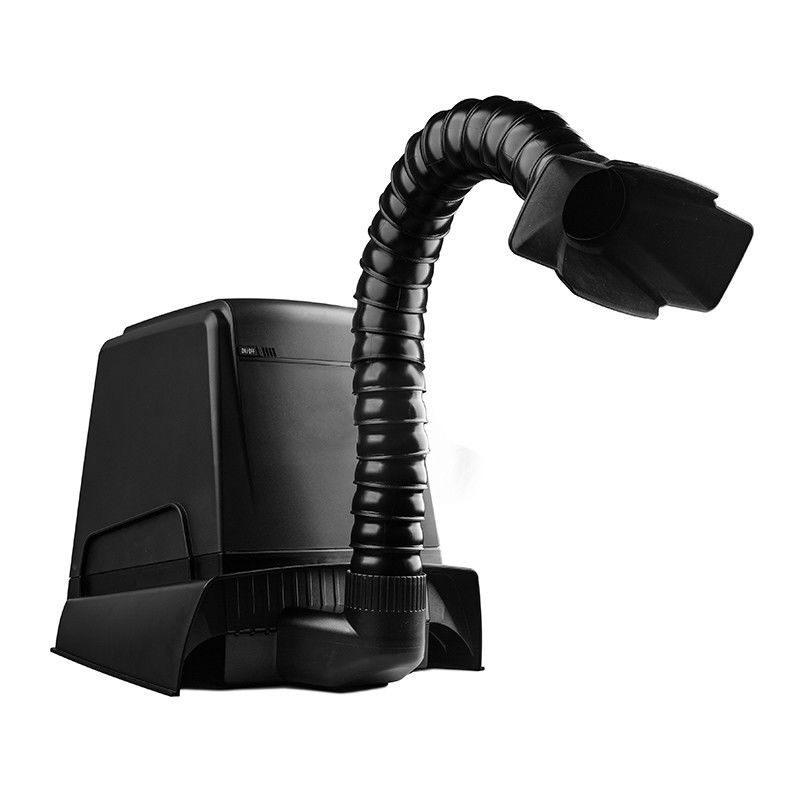

Desktop Soldering Fume Extractor Lightweight Portable 35W 60W 80W
  • Desktop Soldering Fume Extractor Lightweight Portable 35W 60W 80W
  • Desktop Soldering Fume Extractor Lightweight Portable 35W 60W 80W
  • Desktop Soldering Fume Extractor Lightweight Portable 35W 60W 80W
  • Desktop Soldering Fume Extractor Lightweight Portable 35W 60W 80W
  • Desktop Soldering Fume Extractor Lightweight Portable 35W 60W 80W

Desktop Soldering Fume Extractor Lightweight Portable 35W 60W 80W

Place of Origin Shenzhen China
Brand Name Waterun
Certification CE
Model Number F800
Product Details
Smoke Extractor Fan
35W 60W 80W
Systemic Flow:
75m3/h , 100m3/h, 110m3/h
Filtering Efficiency:
99.97% @0.3 Micron
52dB 55dB 59dB
2 Layers
5 Kgs
300 X 270 X 300 Mm
High Light:

Soldering Fume Extractor Lightweight


Soldering Fume Extractor Lightweight


Portable Desktop Solder Fume Extractor

Payment & Shipping Terms
Minimum Order Quantity
USD150 ~ 260
Packaging Details
solder fume extractor fan 52 x 35 x 58cm 18kgs Extractor Arms: 44 x 44 x 19cm
Delivery Time
3-10 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability
2000 units per month
Product Description

Lightweight Benchtop Desktop Fume Extractor With 3 Different Fan Speeds



F800 benchtop fume extractor effectively remove smog, odor, dust, hazardous gas, and other pollutants. Professionally designed, this smog purifier is light, compact and conveniently portable. Utilizing multiple layers of filters, it achieves up to 99.97% of filtration efficiency so that the purified air can be released directly into the room.


It effectively removes dust particles and odor, absorbs undesired gases such as those evolved by formaldehyde and benzene, as well as traps suspended spores in moldy room hence promoting a healthy and highly livable and environment.The desktop fume extractor is for a single user,there's two options of extracting the smoke. One directly by the open big hood.Second is use the suction hose and hood.


Desktop Soldering Fume Extractor Lightweight Portable 35W 60W 80W 0

Product Parameters:


Model F800
Power 35W 60W 80W
Noise 52~59 dB
Speed Gear Gear 1 Gear 2 Gear 3
Systemic Flow (m3/h) 75~ 110 m/s
Filter Size Pre-filter 170*165*15mm / Main Filter 195 x 195 x 120mm
Gross Weight 7.4kg
Cabinet Dimensions 300 x 270 x 300mm
Package Dimensions 53 X 35 X 38 cm
Filtering Efficiency 0.3um 99.97%
Electrical 110V / 220V
Filter Layer 2 Layers
Remote Control Not Included
Arm Dimension Diameter 65mm x Length 80cm
Packing List Main Unit: 1 piece
Power Cord: 1 piece
Arm & nozzle: 1 set
Operation Instruction: 1 piece
Filter one set already inside machine

Product Features:


1.With 3 different air flow speeds to select;
2.Lightweight and compact design; save space and easy to move;
3.Brushless motor ensures high speed with low noise, stable performance and long life time;
4.The glass fiber filter can filter over 80 kinds of viruses, bacteria, microbe, etc;
4.When the filter gets saturated, the built-in buzzer will give sound and light alarm;
5.Two options for operation; with the duct or without the duct.





Removal of smog and odor generated during soldering, gluing and processes which involve small amount of solvent.​


 Desktop Soldering Fume Extractor Lightweight Portable 35W 60W 80W 1

Additional Information:

Available Filter Efficiencies


Pre Filter
For absorb big particles of above 50 microns
Main Filter
For filtering dust particles above 0.3 microns, filtering efficiency rate 99.97%,
For filtering hazardous gases, its filtering efficiency reaches above 95%;


Filter Replacement Period


Pre-filter : 1 week to one month

Main Filter: 3 ~6 months

However, it can be adjusted as per the exact pollutants generated in different Environment;
