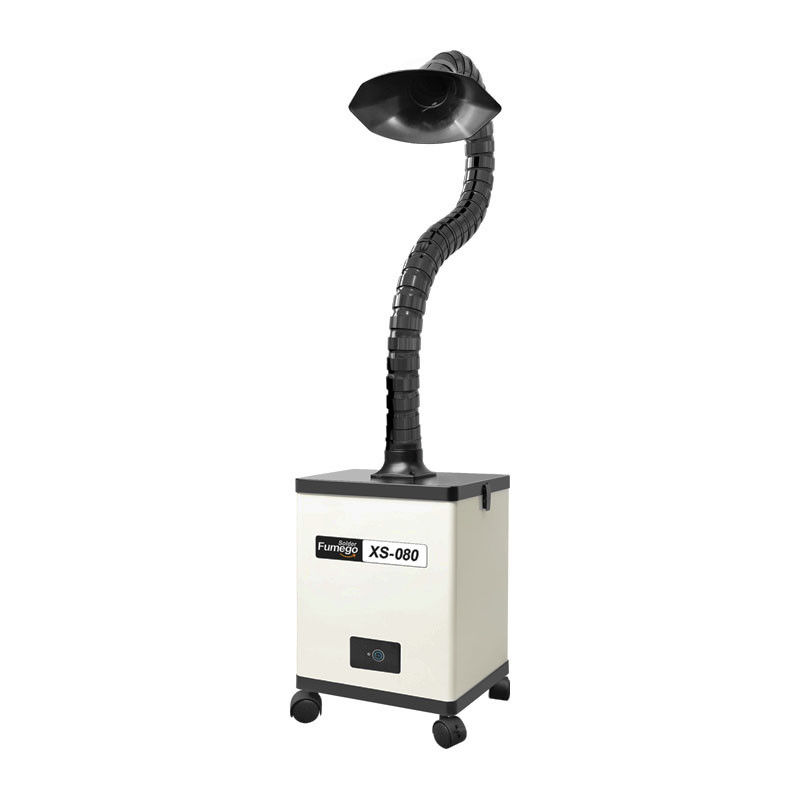

Space Saving Soldering Fume Extractor Absorb Smoke Durable Multiscene
  • Space Saving Soldering Fume Extractor Absorb Smoke Durable Multiscene
  • Space Saving Soldering Fume Extractor Absorb Smoke Durable Multiscene
  • Space Saving Soldering Fume Extractor Absorb Smoke Durable Multiscene
  • Space Saving Soldering Fume Extractor Absorb Smoke Durable Multiscene

Space Saving Soldering Fume Extractor Absorb Smoke Durable Multiscene

Place of Origin China
Brand Name Waterun
Certification CE
Model Number XS-080
Product Details
Smoke Extractor
3 Layers
Systemic Flow:
180 M3/h
Filtering Efficiency:
99.97% @0.3 Micron
Arm Information:
Dia.65mm X 1.2m X 1pcs
265 X 265 X 383 Mm
Less Than 55dB
High Light:

Space Saving Soldering Fume Extractor


Soldering Fume Extractor Durable


Multiscene Soldering Fume Absorber

Payment & Shipping Terms
Minimum Order Quantity
USD140 ~ 220
Packaging Details
Soldering Smoke Extractor 54 X 39 X 58 cm 14kg
Delivery Time
3-10 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability
10000 units per month
Product Description

Double 65mm Diameter Air inlet Low Noise Mini Soldering Fume Purifier for Laser Solder Fumes​​




These soldering smoke purifier are small, save space,there’s four universal wheels on the bottom, it makes the movement easy and flexible. Ducts can be universal adjustment, suitable for all kinds of workstation. The air after purification meets PONY EIA test.


Space Saving Soldering Fume Extractor Absorb Smoke Durable Multiscene 0

Technical Details:


Model XS-80 XS-180
Power 80W 135W
Noise <55 dB <63 dB
Systemic Flow 180 m3/h 2x 125m3/h
Air Velocity 14 m/s 2 x 10 m/s
Filter Size Pre-filter: 178 x 495 x 9mm;
Middle filter: 193 x 193 x 197mm;
Main filter: 238 x 238 x 198cm;
Pre-filter: 245 x 495 x 9mm;
Middle filter: 195 x 195 x 265mm;
Main filter: 24 x 24 x 265cm;
Gross Weight 11kg 13.5kg
Cabinet Dimensions 280 x 280 x 430mm 280 x 280 x 500mm
Package Dimensions 45 x 38 x 52cm 54 x 40 x 59mm
Filtering Efficiency 0.3um 99.97%
Electrical 110V / 220V
Filter Layer 3 Layers
Remote Control Not Included
Arm Dimension Diameter 65mm x Length 120cm
Packing List Main Unit: 1 piece
Power Cord: 1 piece
Arm & nozzle: 1 set
Operation Instruction: 1 piece
Pre-Filter: 5pc (4pieces inside machine)
Middle Filter: 1pc (Included in machine)
Main Filter: 1pc (Included in machine)


Product Features:


1. Cheap price version and high quality fume extractor;
2. Smaller size, but with larger filtering capacity;
3. With 3 layers filters combination,360℃ degree filtering design big dirt holding capacity;
4. New Diamond-shaped nozzle greatly increases the extraction area;
5. DC Brush-less motor, intelligent and energy-saving, with a life-span as long as 40K hours.





Our fume extractors are widely used for eliminating solder fumes, laser fumes, welding fumes, beauty salon fumes and medical fumes, 3D printing fumes, etc. This small fume extractor especially for purifying manual soldering fumes, solder pot fumes, soldering robot fumes, laser marking fumes, beauty salon fumes.



Additional Information:


Available Filter Efficiencies Pre Filter
For filter big particles of above 50 microns
Middle Filter
For particles above 0.3 microns, its filtering efficiency reaches 99.97%.
Main Filter
For filter dust particles above 0.3 microns, filtering efficiency reaches 99.97%,
For filtering hazardous gases, its filtering efficiency reaches above 95%;
Filter Replacement Period Pr-Filter: 1 week to 1 month
Middle Filter: 2-3 months
Main Filter: 3-6 months
However, it can be adjusted as per the exact pollutants generated in different Environment;

Competitive Advantage:
Our company uses a brushless motor, compare with the ordinary motor, this motor speed is higher, lower noise, it does not require maintenance, but longer product life span. Self-developed impeller, better quality than ordinary plastic impeller, more stable, more powerful suction. The unique tiered filter design, can effectively purify the toxic and harmful substances in the air, such as formaldehyde, benzene, ammonia, radon gas, sulfur dioxide..etc, and use of low cost.

Compared with the products from foreign countries, our products in terms of the effect is almost the same, but the majority of our products are less than USD2000, so our products are cost-effective, and the use of more affordable cost. The products from abroad mainly purify the viruses and bacteria as the main direction of governance. In China not only to purify viruses, bacteria, but also clean harmful smoke pollution. WHO estimates that there are over 200 million people deaths each year due to inhalation of indoor and outdoor air pollution in small particles.



Our Quality:

Our products go from design to production to final product. Each working procedure is strictly controlled, we make really effective fume extractors only. The filtering efficiency of our fume extractors has reached the highest standard in the world.


Space Saving Soldering Fume Extractor Absorb Smoke Durable Multiscene 1


OEM & ODM Services:


We can offer OEM & ODM services. Welcome to talk with us in details.
