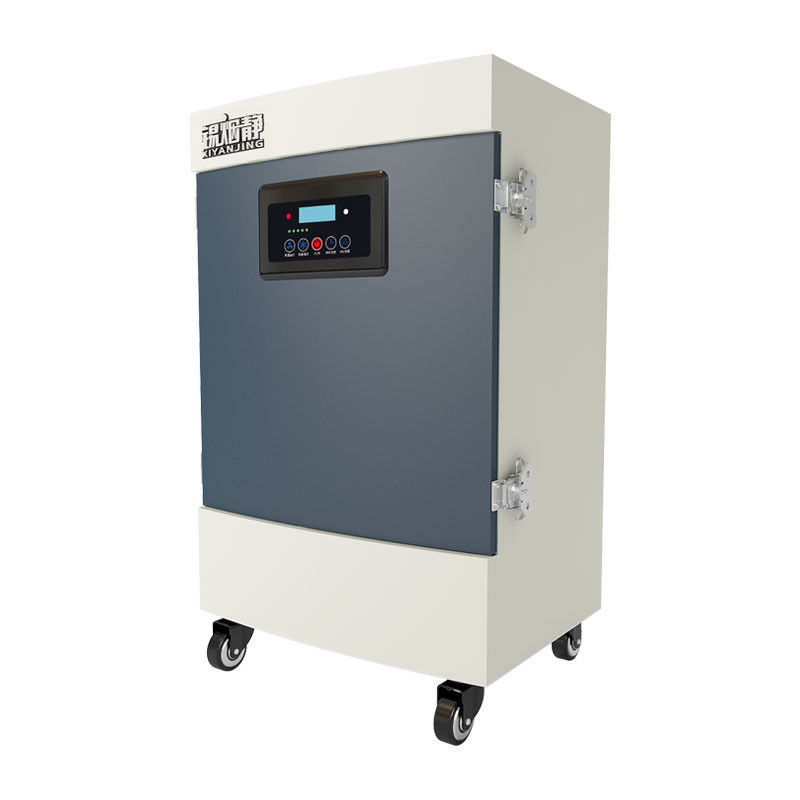

Industrial Laser Smoke Extractor 60dB , Durable Laser Fume Extraction System
  • Industrial Laser Smoke Extractor 60dB , Durable Laser Fume Extraction System
  • Industrial Laser Smoke Extractor 60dB , Durable Laser Fume Extraction System
  • Industrial Laser Smoke Extractor 60dB , Durable Laser Fume Extraction System

Industrial Laser Smoke Extractor 60dB , Durable Laser Fume Extraction System

Place of Origin China
Brand Name Waterun
Certification CE
Model Number XS330
Product Details
Smoke Fume Extractor
5 Layers Filters
Systemic Flow:
450m3 Per Hour
Filtering Efficiency:
0.3μm 99.97%
425 X 315 X 700 Mm
Aftersales Service:
Online Support
High Light:

Industrial Laser Smoke Extractor


Laser Smoke Extractor 60dB


Durable Laser Fume Extraction System

Payment & Shipping Terms
Minimum Order Quantity
USD550 ~ 700
Packaging Details
mobile fume extractor 53 x 45 x 78cm 38kgs Heat resistance Tube 42 X 41 X 19 cm 2.2kgs
Delivery Time
3-10 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability
1000 units per month
Product Description

Industrial Fume Exhaust Extractor Smoke Remover Laser Fume Extraction Systems​




This small fume extractor and smoke collector is a lightweight and efficient fume extraction system designed for small laser cutting,laser marking,laser engraving machines.It also works well with welding tools, soldering stations, CNC machines.The laser fume extractor can help to achieve no air pollution by multi-stage filtration medias.


Industrial Laser Smoke Extractor 60dB , Durable Laser Fume Extraction System 0

Technical Datas:


Model XS330 XS700
Power 300W 700W
Noise <60 dB <63 dB
Systemic Flow 450 m3/h 750m3/h
Filter Layer 8 7
Filter Size

1st Layer Pre-filter 100mm

2nd Layer PP Filter 50mm

3th Layer Glass Filber Filter 100mm

5-6th Layers  Active Carbon Filter 50mm

1st Layer Fire Prevention Mesh

2nd Layer Pre-filter Cotton 100mm

3~4th Layer PP Filter 50mm

5th Layers Glass Fiber Filter 100mm

6~7th Layers Active Carbon Filter 50mm

Gross Weight 38 kg 60 kg
Cabinet Dimensions 425 x 315 x 700mm 550 x 440 x 1060mm
Package Dimensions Body:53 x 45 x 78 cm Body:64 x 53 x 125cm
Filtering Efficiency 0.3um 99.97%
Electrical 110V / 220V
Remote Control Included
Duct Dimension Diameter 100mm x Length 2 meters
Packing List Main Unit: 1 piece
Power Cord: 1 piece
Tube Kits: 1 set
Operation Instruction: 1 piece
One Set Filters inside machine




1. This laser smoke purifier body is made of metal frame structure, it is durable.

2. The fume extraction system adopts micro-computer chip control system, supporting digital display and remote control.

3.5-stage layer filter of the laser fume extractor can effectively remove harmful substances from smoke and has a long service life.
4.The digital control panel lets you easily adjust this purifier's air flow and offers timed operation to match each job; the included remote also allows you to stay in complete control of its operation from up to 5 meters away to let you make quick adjustments as you work.
5. This smoke purifier adopts DC brush-less motor with stable performance, long life and low noise.

6. The impeller of fume extraction system is made of special alloy material, which is anti-corrosion, smooth operation and has large air suction capacity;



 This laser fume extractor is widely used in small and medium laser marking, laser cutting and laser engraving.



Acrylic Extraction 570m3/h 700W Co2 Laser Fume Extractor 3Acrylic Extraction 570m3/h 700W Co2 Laser Fume Extractor 4Acrylic Extraction 570m3/h 700W Co2 Laser Fume Extractor 5Acrylic Extraction 570m3/h 700W Co2 Laser Fume Extractor 6


Additional Informations:


Available Filter Efficiencies


Pre Filter Cotton

For filter big particles of above 50 microns

HEPA Filter

For particles above 0.3 microns filtering efficiency 99.97%.

Active Carbon Filter

For filtering hazardous gases filtering efficiency above 95%;


Filter Replacement Period


Pr-Filter cotton: 1 week to 1 month

Hepa Filter: 2-3 months

Active Carbon Filter: 3-6 months

However, it can be adjusted as per the exact pollutants generated in different Environment;



1. What’s the functions for the filters?
Answers. 1) Pre-Filter/F8 pre-filter: the large-size pad filter can filter large particles of dust (according the requirement to select pre-filter or F8)
2) PP Middle Filter/Fiber glass filter: it filters the middle-size, small size particles bigger powders for prolonging the main filter's life. (according the requirement to select PP middle filter or fiber glass filter,can use both, the efficiency better.)
3) Main Filter/Active carbon: it cleans harmful particles and fumes.
4) High efficiency filter(combine middle filter and active carbon filter): it can filter about 0.3micron particles and other harmful fumes.
2. What’s the advantage compare with ducted exhaust fan?
Answer: 1. Many advantages like (1) Clean the air quality (2) energy saving (3) easy installation, flexible remove (4) low cost (5) reduce the incidence of diseases and major diseases, and health is priceless (6) to reduce unpleasant  smell (7) to reduce dust and other harmful substances, and so on.
3. What’s the life span of our fume extractor?
Answer: Motor lifetime is (continuous working 24 hours) 20,000 hours, consider environmental factors. Usually it can use 4-5 years without any problems.
4. The ducts for the fume extractor can be shortened or lengthened?
Answer: It can be shortened or lengthened appropriate; but we suggest not more than 1.5meter. For multi-station, the total pipe length should not exceed 10 meters.
5. What’s the best distance between the nozzle and the smokes?
Answer: The distance to be 5-15cm is the best.
6. How long need to to replace the pre-filter, middle filter and the main filter?
Answer: 1. Pre-filter : normally needs to replace by 1 months
             2. Middle filter: normally needs to replace by 3 months
             3. Main filter: normally needs to replace by 6 months.
7. Bent pipe will affect smoke purify?
Answer: Yes, it affect the suction power, it should reduce the bent rate.
8. Can our fume extractor completely filtered poison gas?
Answer: No, there still no any kind of filter can filter out 100% of poison gas, but you can make a different filter net rate upon request.
