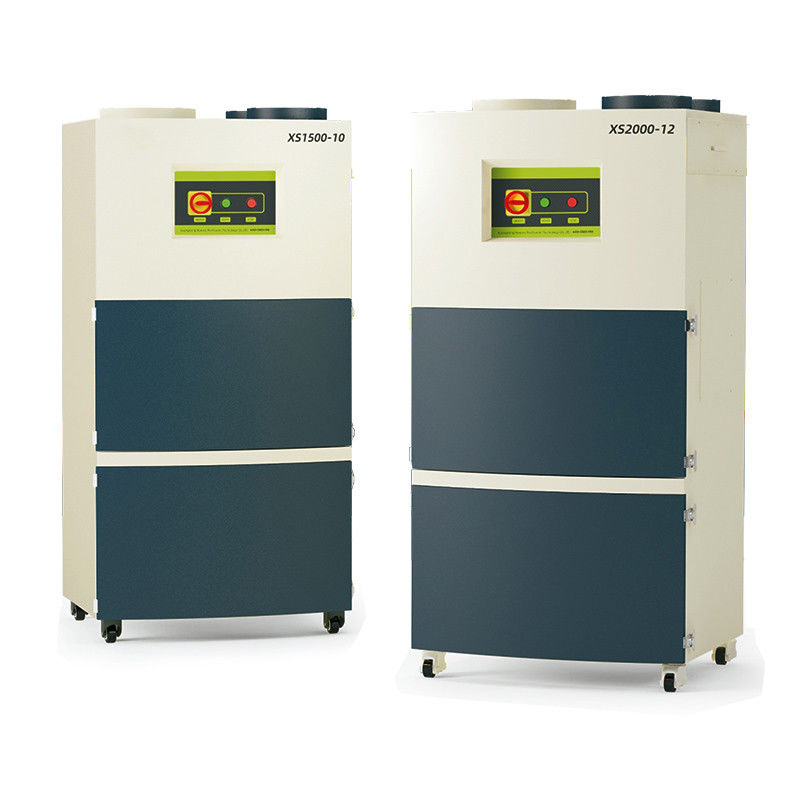

Welding Fume Extraction System Exhaust Fume Extractor For Reflow Soldering, SMT Process
Description:
Welding Exhaust fume extractor is design with fire prevention filtering system.The large machine size with powerful suction and big filtering capacity fume extractor is specially for big laser cutting machines, wave soldering oven, reflow soldering oven and Arc Welding Machine etc.The fume extraction system highlights features: Fire Prevention Filtering System, Vertical Motor and Air Inlet & Outlet Upward Construction.
Technical Datas:
| Model | XS1500-10 | XS2000-12 |
| Power | 1.1Kw | 2.2Kw |
| Noise | <65 dB | <70 dB |
| Systemic Flow | 1500 m3/h | 2000m3/h |
| Filter Layer | 3 | 4 |
| Filter Description |
1st Layer fire prevention mesh 2nd Layer Square Bellows 3rd Layer Integral sheet metal filter |
1st Layer Fire Prevention Mesh 2nd Layer Square Bellows Pocket 3rd Layer H10 Glass Fiber Filter 4th Layer Integral Sheet Metal Filter |
| Gross Weight | 200kg | 250kg |
| Cabinet Dimensions | 680 x 585 x 1500mm | 800 x 700 x 1645mm |
| Package Dimensions | Body:90 x 70 x 180cm | Body:90 x 80 x 185cm |
| Filtering Efficiency | 0.3um 99.97% | |
| Electrical | 110V / 220V | |
| Remote Control | Not Included | |
| Duct Dimension | Diameter 150mm x Length 2 meters | |
| Packing List | Main Unit: 1 piece Power Cord: 1 piece Tube Kits: 1 set Operation Instruction: 1 piece One Set Filters inside machine |
|
Features:
1.Air Inlet & Outlet Upward Construction; U-shaped air duct designed for heat dissipation.
2.The internal velocity of the air duct is conducive to settlement of large particles.The sealing plate of fire access can be removed to clean the settling particles.
3.The first-line brand vertical motor, the motor and aluminum shaft connected;Low noise & vibration rate, using volute design to increase flow and negative pressure effect.
4.Double air intakes can be selected according to the working condition: one spare, one connecting pipe; The Installation size of fire access on the right side below is same as the installation size of air inlet.
5.In case of fire inside the equipment, do not open the front door plate, open the plate of fire access, use the nozzle of fire extinguisher point to the fire access, put out fire, so as to avoid more serious safety accidents caused by pressure shock wave generated by opening the front panel.
6.The control board is equipped with an emergency stop main switch.In case of equipment danger, disconnect the main power switch and stop equipment operation.
7.The Printing control panel more beautiful, printing color corrosion resistance, not easy to peel off the paint surface.
Applications:
SMT Wave Soldering Oven, Reflow Soldering Oven, Soldering Pot, Multi-operators Soldering, Coating Machine,Argo Arc Welding Machine, Laser cutting include:
Laser cutting of metals: tubes, sheet, parts
Laser cutting of plastics: pipe, manufactured parts, sheet - acrylic
Laser cutting of labels: plastic, paper
Additional Informations:
| Available Filter Efficiencies |
Fire Prevention Layer Bellows Pocket Glass Fiber Filte
|
| Filter Replacement Period |
XS1500-10 1st Layer fire prevention mesh for repeated use (need regular cleaning) 2nd Layer Square Bellows Pocket suggest replacement period: 2-4 months 3rd Layer Integral sheet metal filter suggest replacement period: 6-8 months XS2000-12 1st Layer Fire Prevention Mesh for repeated use (need regular cleaning) 2nd Layer Square Bellows Pocket suggest replacement period: 2-4 months 3rd Layer H10 Glass Fiber Filter suggest replacement period: 3-6 months 4td Layer Integral Sheet Metal Filter suggest replacement period: 8-12 months
|
About Us:
Established in 2003, Waterun Technology is located in Shenzhen, China. We are a leading manufacturer & exporter of Fume Extractors,Soldering Robots,Screw Fastening Robots, Glue Dispensing Robots, ESD & Cleanroom products, Tools & Instruments for electronic assembly industry.
We own several brands: WATERUN, NEW OXYGEN, FUME GO, QUBO, etc.Waterun owns two factories and one business & logistics center and nearly 100 employees.Due to the good quality and good pricing, our products are getting popular in many countries in the world.
Our Quality:
Our products go from design to production to final product. Each working procedure is strictly controlled, we make really effective fume extractors only. The filtering efficiency of our fume extractors has reached the highest standard in the world.
OEM & ODM Services:
We can offer OEM & ODM services. Welcome to talk with us in details.
