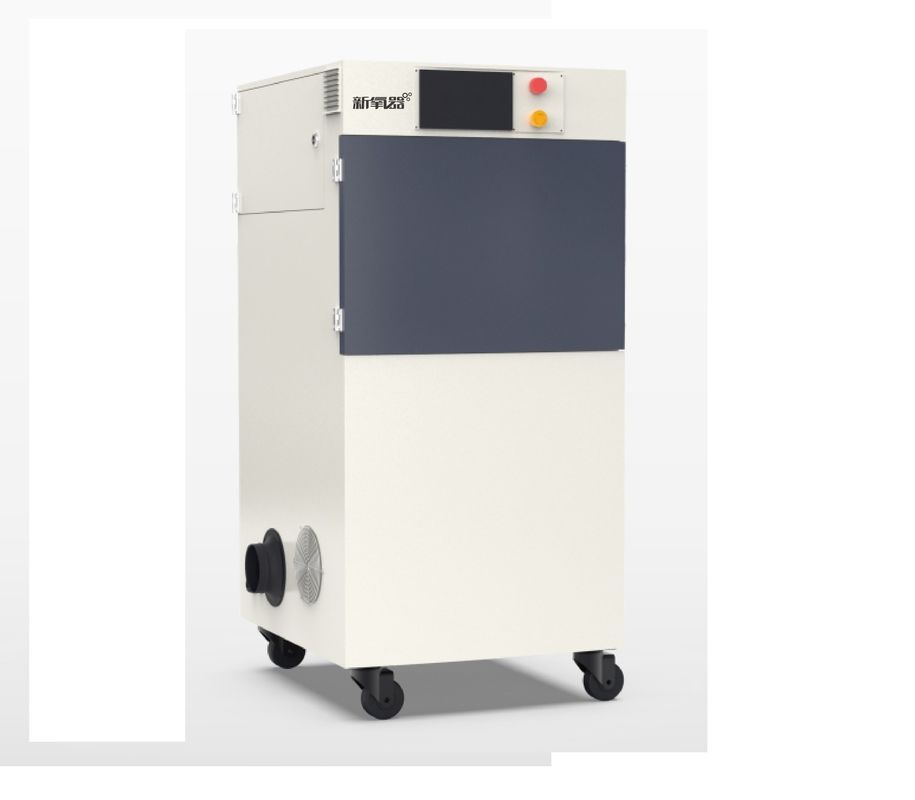

Dust Collector Industrial Air Extractor Welding Fume Eliminator For Laser Die-cutting Machine
Description:
We are the world's leading supplier of industrial dust and explosion protection solutions.Our mission is to reduce air pollution, fire and explosion mass casualties, and is committed to making more companies only have "story" without "accidents". Our dust collector application fields are: laser processing, welding, lithium battery, food, medicine, tobacco, automobile, shipbuilding, machinery manufacturing and many other industries.
The Sectional Type Initiative Explosion-proof Dust Removal System is the Sectional Type, More Safer, Protect your “Lithium” , it use active explosion-proof technology (No Deflagration ). The histories for the 3 versions dust collector as below:
1.0 version 1st Generation Part Explosion-proof
2.0 version 2st Generation Whole Machine Explosion-proof
3.0 version 3rd Generation System Explosion-proof
Technical Datas:
| Model | XL-1200 | XL-1500 | XL-2000 |
| Power | 0.75kw | 1.5kw | 2.2kw |
| Filters Cartridge | 2 pieces | 2pcs | 2pcs |
| Empty Load Rotating Speed | 2950rpm | 2950rpm | 2950rpm |
| Airflow | 1200m3/h | 1500m3/h | 2000m3/h |
| Negative Pressure | 1800Pa | 2000Pa | 2400Pa |
| Noise | <68dB | 72dB | 72dB |
| Dimensions | 750 x710x1800mm | 750x710x1800mm | 750x710X1800mm |
| Weight | 180kg | 200kg | 200kg |
| Air Inlet Dia. | 150/200mm | 150/200mm | 150/200mm |
| Model | XL-320 | XL-420 | XL-530 |
| Power | 3kw | 4kw | 5.5kw |
| Filters Cartridge | 1 piece | 1 piece | 1 piece |
| Voltage | 380V | 380V | 380V |
| Airflow | 320m3/h | 420m3/h | 530m3/h |
| Negative Pressure | 22000Pa | 28000Pa | 30000Pa |
| Noise | <72dB | 72dB | 72dB |
| Dimensions | 560 x650x1100mm | 560 x650x1100mm | 560 x650x1100mm |
| Weight | 150kg | 160kg | 180kg |
| Air Inlet Dia. | 50/65mm | 50/65mm |
50/65mm |
10 core values of Fumego Dust Collector
Four Additions:
1. Turn waste into treasure to improve efficiency
2. Improve production efficiency
3. Improve the service life of production equipment
4. Improve ambient air quality
Six Reductions:
1. Reduce sick leave and turnover rate
2. Reduce labor disputes
3. Reduce occupational diseases
4. Disaster reduction and loss prevention
5.Reduce the investigation and punishment of emergency environmental protection departments
6. Reduce and reduce product defect rate
Applications:
Dust Extraction for Lamination machine, automatic winding machine, laser die-cutting machine, pole piece rolling, slitting machine.
Problem: In the process of using the rolling and slitting machine for slitting, a lot of excess powder will be attached to the product, and these powders will be left on the rolling and slitting machine, which will affect the service life of the equipment.
Solution: X2 series dust collector with manual rotating dust collector can well collect the dust generated during rolling and slitting. If too much dust is collected, the rotary handle can be rotated to clean the filter element to prevent dust Clogging of dust removal equipment due to accumulation.
Our Quality:
Our products go from design to production to final product. Each working procedure is strictly controlled, we make really effective fume extractors only. The filtering efficiency of our fume extractors has reached the highest standard in the world.
OEM & ODM Services:
We can offer OEM & ODM services. Welcome to talk with us in details.
