| Place of Origin | China |
| Brand Name | Waterun |
| Certification | CE |
| Model Number | XS2000-12 |

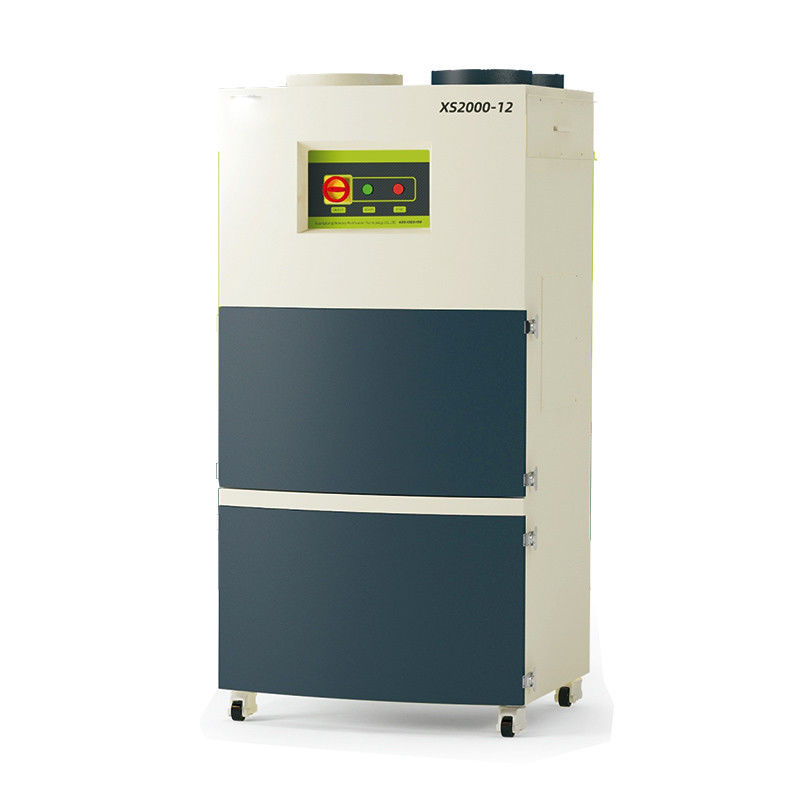

High Power SMT Wave Soldering Oven Fume Extractors for Big SMT Machines, Laser Machines
Description:
Latest reflow oven fume extractor with big power suction and airflow.
The door with durable stainless steel butterfly latch convenient to open, with the Integrated filter larger dust capacity;
Accordion style bag filtering bigger particles; Top inlet & outlet form a U-shaped system good heat dissipation;
A spare air inlet for more option, fireproof mesh effectively blocks sparks; Bottom side fire seal plate can be remove to clean dust;
Used for SMT wave/reflow soldering oven,argon arc welding etc;
Technical Datas:
| Model | XS2000-12 |
| Power | 2.2Kw |
| Noise | <70 dB |
| Systemic Flow | 2000m3/h |
| Filter Layer | 4 |
| Filter Description |
1st Layer Fire Prevention Mesh 2nd Layer Square Bellows Pocket 3rd Layer H10 Glass Fiber Filter 4th Layer Integral Sheet Metal Filter |
| Gross Weight | 250kg |
| Cabinet Dimensions | 800 x 700 x 1645mm |
| Package Dimensions | Body:90 x 80 x 185cm |
| Filtering Efficiency | 0.3um 99.97% |
| Electrical | 110V / 220V |
| Remote Control | Not Included |
| Duct Dimension | Diameter 150mm x Length 2 meters |
| Packing List | Main Unit: 1 piece Power Cord: 1 piece Tube Kits: 1 set Operation Instruction: 1 piece One Set Filters inside machine |
Applications:
SMT Wave Soldering Oven, Reflow Soldering Oven, Soldering Pot, Multi-operators Soldering, Coating Machine,Argo Arc Welding Machine, Laser cutting include:
Laser cutting of metals: tubes, sheet, parts
Laser cutting of plastics: pipe, manufactured parts, sheet - acrylic
Laser cutting of labels: plastic, paper
Additional Informations:
| Available Filter Efficiencies |
Fire Prevention Layer Bellows Pocket Glass Fiber Filte
|
| Filter Replacement Period |
XS1500-10 1st Layer fire prevention mesh for repeated use (need regular cleaning) 2nd Layer Square Bellows Pocket suggest replacement period: 2-4 months 3rd Layer Integral sheet metal filter suggest replacement period: 6-8 months XS2000-12 1st Layer Fire Prevention Mesh for repeated use (need regular cleaning) 2nd Layer Square Bellows Pocket suggest replacement period: 2-4 months 3rd Layer H10 Glass Fiber Filter suggest replacement period: 3-6 months 4td Layer Integral Sheet Metal Filter suggest replacement period: 8-12 months
|
